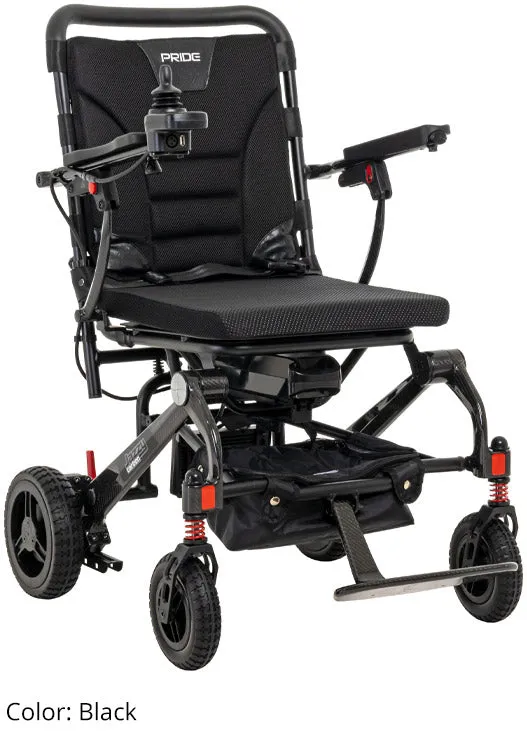

With Carbon Fiber Technology, the Jazzy® Carbon Power Wheelchair Becomes Your Greatest Travel Companion
You know Jazzy® for its industry-leading performance and quality. Now let’s talk about portability.
Jazzy® Carbon uses ultralight but exceptionally strong carbon fiber technology for its frame and a lightweight, reliable lithium-ion battery.
Travelers keep their Jazzy Carbon charged and standing by for spontaneous jet-setting adventures. They know it breezes through airport security, easily stows on the plane and gives them the mobility support they need to make the most of their travels.
Weighing in at a stunning 39 pounds without the battery, Jazzy Carbon still provides top speeds up to 3.7 mph with a weight capacity of 300 pounds.

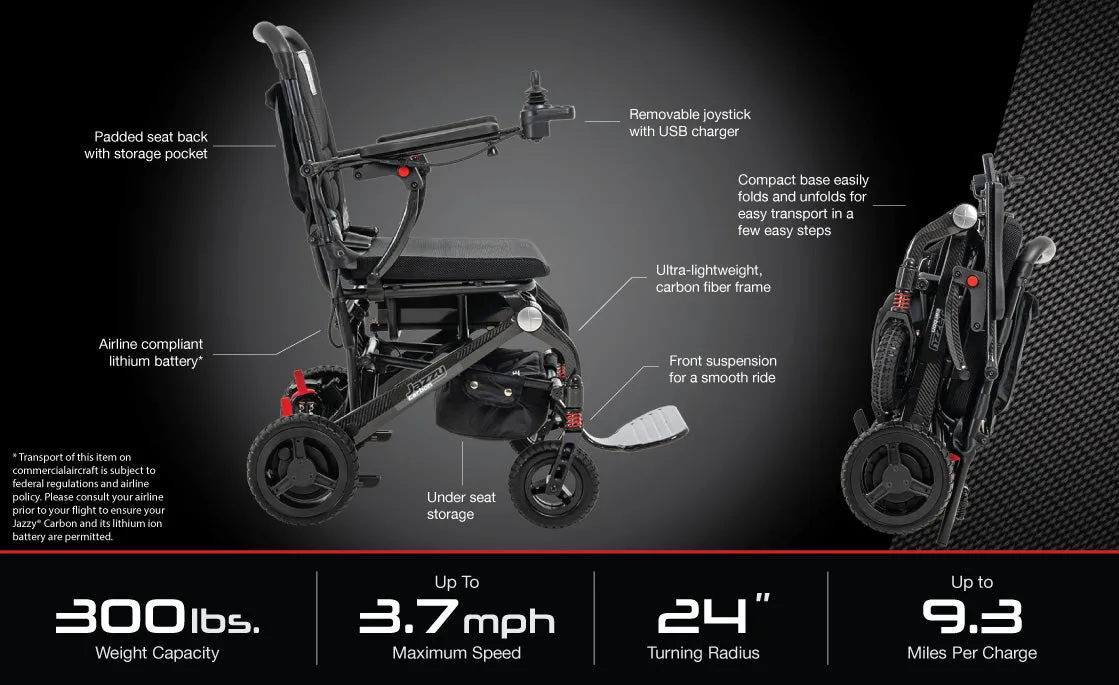

Jazzy® Carbon Features:
- 300 lb. weight capacity
- Removable joystick for transporting with built in USB charger
- Airline compliant lithium battery**
- Front suspension for a smooth ride
- Ultra-lightweight, carbon fiber frame specifically designed for traveling
- Compact base easily folds and unfolds for easy transport in a few easy steps
- Padded seat back with storage pocket and soft, removable seat cushion for all-day comfort
- Free-wheel levers to easily disengage the brake allowing this lightweight power chair to be pushed like a manual chair
- Included under-seat storage and adjustable lap belt
- When folded 28.3"x12.2"x24"
*Pride® FDA Class II Medical Devices are designed to aid individuals with mobility impairments
**Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted.
| CATEGORY | SPECIFICATION |
|---|---|
| Model | Jazzy® Carbon |
| Weight Capacity | 300 lbs. |
| Turning Radius1 | 24" |
| Maximum Speed1 | Up to 3.7 mph |
| Ground Clearance3 | 2" |
| Overall Length3 | 37" |
| Overall Width3 | 24" |
| Seat-to-Ground Height | 19" |
| Seat-to-Foot Platform Height | 14.5" (no adjustment) |
| Front Wheels | 7" |
| Rear Wheels | 8.5" |
| Seat-to-Floor Range with Standard Cushion | 20.75" |
| Seat-to-Floor Range without Cushion | 18.75" |
| Power Elevating Seat | NA |
| Seat Weight(s) | NA |
| Battery Sizes | 24V 12AH (288WH) |
| Suspension | Front |
| Total Weight Without Batteries3,5 | 39 lbs. |
| Total Weight With Batteries3,5 | 43.6 lbs. |
| Heaviest Piece When Disassembled3 | N/A |
| Standard Seating | Material: Black, Foam Dimensions: 17" x 17" |
| Maximum Seat Size | 17" x 17" |
| Per Charge Range | Up to 9.3 miles |
| Drivetrain | 24v/250W Brushless motors |
| Standard Electronics | 35A Brushless Micon |
| HCPCS Codes | Non-coded: K0899 |
| Braking System | Regenerative and electromechanical |
| Battery Weight4 | 4 lbs. |
| Battery Charger | Off-board, 2-amp lithium-ion |
| Weight of Heaviest Piece | NA unit folds and doesn't disassemble |
| Warranty | Frame: Lifetime limited; Drivetrain: 1-year limited; Electronics: 1year limited; Batteries: 1-year limited |
| Notes: 1 Varies with user weight, terrain type, battery amp-hour (AH), battery charge, battery condition, and tire condition. This specification can be subject to a variance of ( or -) 10%. 2 Tested in accordance with ANSI/RESNA, MC Vol2, Section 4 & ISO 7176-4 standards. Results derived from theoretical calculations based on battery specifications and drive system performance. Test conducted at maximum weight capacity. 3 Due to manufacturing tolerances and continual product improvement, this specification can be subject to a variance of ( or -) 3%. 4 Battery weight may vary based on battery manufacturer. 5 Includes standard seat weight. | |
| All specifications subject to change without notice. The information contained herein is correct at the time of publication; we reserve the right to alter specifications without prior notice. Speed and range vary with user weight, terrain type, battery charge, battery condition and tire pressure. Due to manufacturing tolerances and continual product improvement, length, width, turning radius and ground clearance can be subject to variance of or – 3 %. Dimensions listed are for power base only. Overall measurements will vary based on seating and accessory selections. | |
| Note: Transport of this item on commercial aircraft is subject to federal regulations and airline policy. Please consult your airline prior to your flight to ensure your Jazzy® Carbon and its lithium ion battery are permitted . | |
