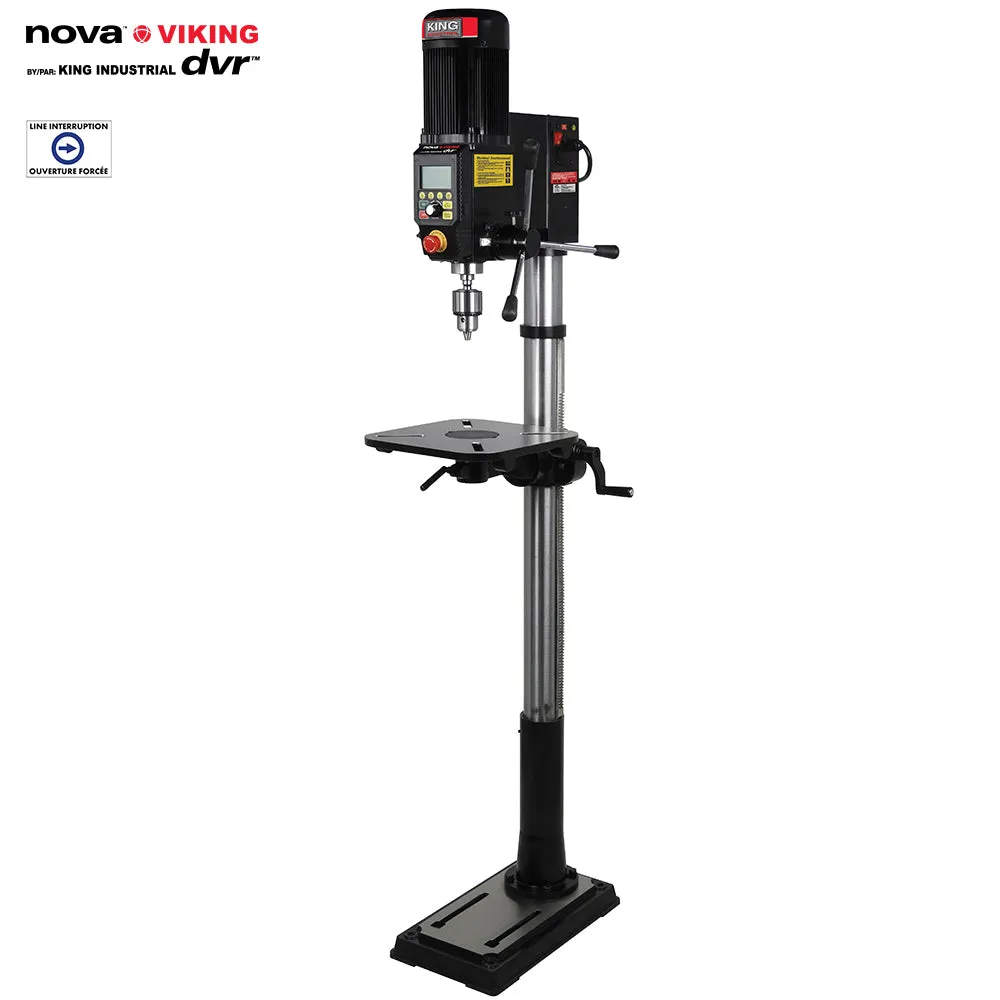

- Smart drill press combines common drill press features with state of the art technology
- Powerful direct drive 1 HP high torque motor with no pulleys or belts to cause vibration

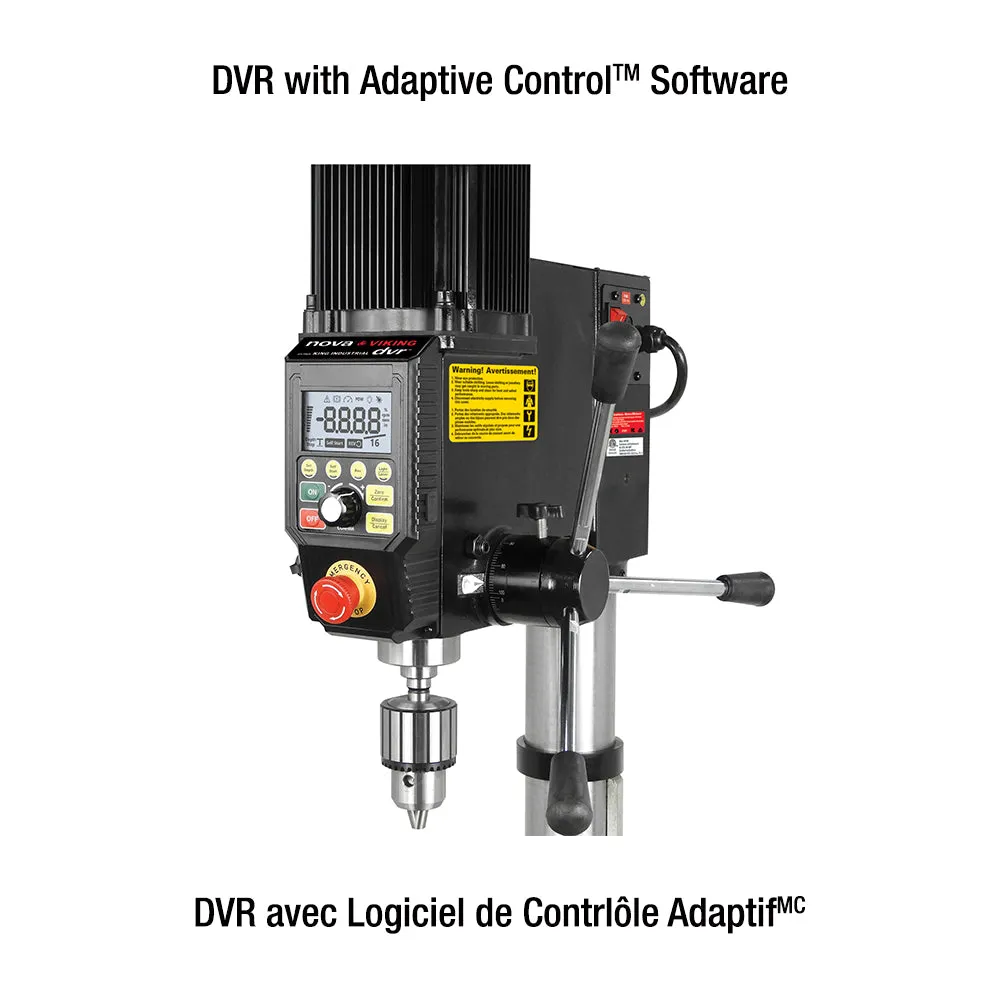

- Digital Variable Reluctance (DVR) Direct Drive Technology with Adaptive Control (TM) Software which works for you to produce optimum results in wood, metal, plastic and glass
- Constant torque under load, depth and vibration sensors and emergency stop
- Intelligent speed selection and dial knob for precise speed adjustments
- Automatic electronic depth stop quickly and accurately stops to the precise programmed depth
- Electronic braking and forward/reverse
- Convenient LED light and twin laser guide system
- Comes with 5/8” drill chuck & key, firmware USB cable, knock-out wedge, adjustment wrench and hex. keys
SPECIFICATIONS:
- 1HP, 120V, 15 Amp Direct Drive, Variable Speed DVR Motor
- Class F Winding Insulation. Industrial spec for long life
- Swing: 16"
- Spindle Travel: 4-1/2"
- Number of Spindle Speeds: Variable
- Speed Range: 50-3000 rpm is default (option in settings to increase to 6000 rpm)
- Spindle Taper: MT-2
- Spindle Distance Chuck to Table: (Max.) 26 5/8"
- Table Size (L x W): 12-5/8" x 12-5/8"
- Table Tilt (Deg.): -45 to 45
- Chuck Size: 5/8"
- Column Diameter: 3.62"
- Base Size (L x W): 12-5/8"x 20"
